Connecting Databricks to Bicycle

Connect to Databricks SQL warehouses for lakehouse analytics. Bicycle queries Unity Catalog tables using pushdown so analytics run against your warehouse.

Data in Databricks is organized as catalog → schema → table. Bicycle discovers tables from system.information_schema.tables and names streams as catalog/schema/table.

Requirements

To follow the steps in this guide, you'll need:

• Permission to create connectors in Bicycle
• A Databricks workspace with a running SQL warehouse
• Permission in Databricks to create or manage a service principal or personal access token (PAT), and to grant Unity Catalog privileges
• The warehouse Server hostname and HTTP path from the warehouse connection details
• If your workspace restricts access by IP or private network rules, allow Bicycle network access before connecting

Work with your Databricks administrator to provision access. In most organizations, a platform or data team runs the SQL grants below; an analyst or engineer then completes the connection in Bicycle.

Item	Description
Server hostname	Workspace hostname for the SQL warehouse (for example, dbc-12345.cloud.databricks.com)
HTTP path	SQL warehouse HTTP path (for example, /sql/1.0/warehouses/abc123def456)
Port (optional)	Databricks port; defaults to 443 if omitted
Catalog (optional)	Unity Catalog name to scope discovery; omit to discover all accessible catalogs
Schema (optional)	Schema within the catalog; omit to discover all accessible schemas
Table Pattern (optional)	Regex used to filter table names during discovery
Authentication	API key (PAT) or OAuth (M2M) service-principal credentials

Official Databricks documentation

• Get SQL warehouse connection details
• Personal access tokens for service principals
• OAuth machine-to-machine (M2M) authentication
• Databricks JDBC authentication

Prepare Databricks access

Complete these steps once, regardless of which authentication method you use in Bicycle.

Retrieve SQL warehouse connection details

Collect the hostname and HTTP path from your SQL warehouse connection details.

1. In your Databricks workspace, go to SQL Warehouses and open the warehouse Bicycle should use.
2. Open the Connection details tab.
3. Copy the Server hostname and HTTP path.

Follow the Databricks guide for getting connection details for a SQL warehouse.

Grant SQL warehouse access

The Databricks user or service principal must have CAN USE on the SQL warehouse.

1. In the workspace, open SQL Warehouses and select your warehouse.
2. Go to the Permissions tab.
3. Grant CAN USE to the identity that will connect:
   • PAT: the Databricks username that owns the token
   • OAuth M2M: the service principal

Grant Unity Catalog permissions

The connecting identity must have the following privileges on each catalog and schema Bicycle should read. Run these in a SQL warehouse or notebook as a metastore admin or catalog owner:

Grant read access in Unity Catalog

GRANT USE CATALOG ON CATALOG <catalog> TO `<principal>`;
GRANT USE SCHEMA ON SCHEMA <catalog>.<schema> TO `<principal>`;
GRANT SELECT ON SCHEMA <catalog>.<schema> TO `<principal>`;

Replace:

• <catalog> — Unity Catalog name (for example, main or analytics)
• <schema> — schema within that catalog (for example, default)
• <principal> — identity that connects:
  • PAT: the Databricks username that owns the token (for example, connector_reader or user@company.com)
  • OAuth M2M: the service principal Client ID / Application ID (UUID)

Repeat the schema-level grants for each schema Bicycle should discover and read. GRANT SELECT ON SCHEMA covers all current and future tables in that schema.

note

Create a dedicated service principal or token owner for Bicycle. Do not use personal credentials for production connections.

Allowlist Bicycle network access

If your Databricks workspace restricts SQL warehouse access by IP address or private network rules, work with your Databricks administrator to allow inbound traffic before you create the connection in Bicycle. Bicycle does not configure workspace IP access lists or validate network access during connection setup — blocked network access appears as a failed Test connection.

This usually means updating your workspace IP access list or confirming the SQL warehouse endpoint is reachable through your private network configuration.

Contact your Bicycle administrator for the IP addresses to allowlist. Bicycle does not display these addresses in the Connectors UI.

---

Connect with API key (PAT)

Use a personal access token when your organization allows token-based service access.

In Databricks

1. In Databricks, open your profile menu and go to Settings > Developer > Access tokens.
2. Click Generate new token, set an expiration if required, and copy the token. It is shown only once.
3. Grant the token owner CAN USE on the SQL warehouse and the Unity Catalog grants above (use the token owner's username as <principal>).

For service-principal tokens, follow the Databricks guide for personal access tokens for service principals.

warning

Store the token in your organization's secrets manager, rotate it according to your security policy, and redact it from screenshots.

In Bicycle

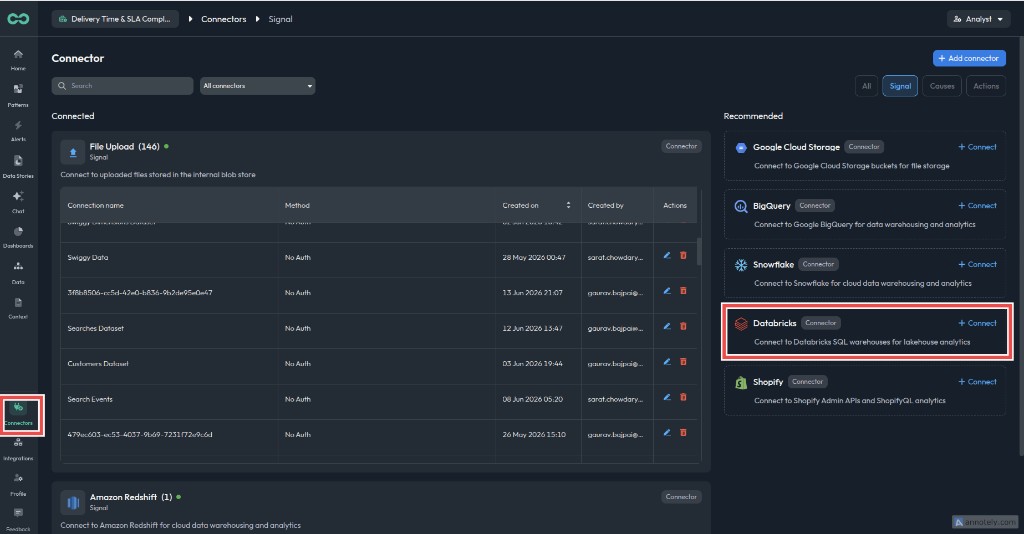

Open Connectors and select Databricks

In Bicycle, go to Connectors. Under Recommended, find Databricks and click + Connect.

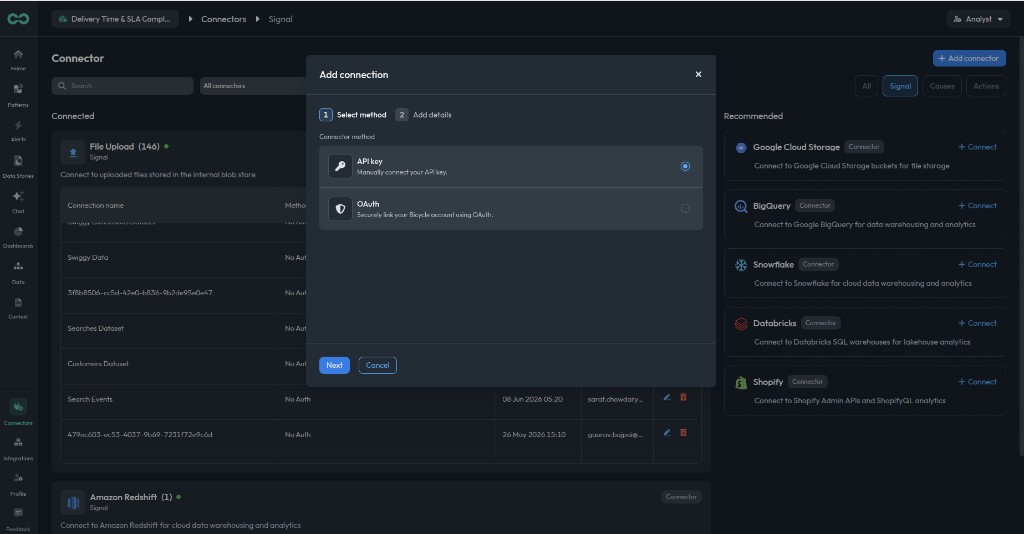

Choose API key

Enter a connection name that identifies the environment, such as Databricks Production. Select API key as the Connector method, then click Next.

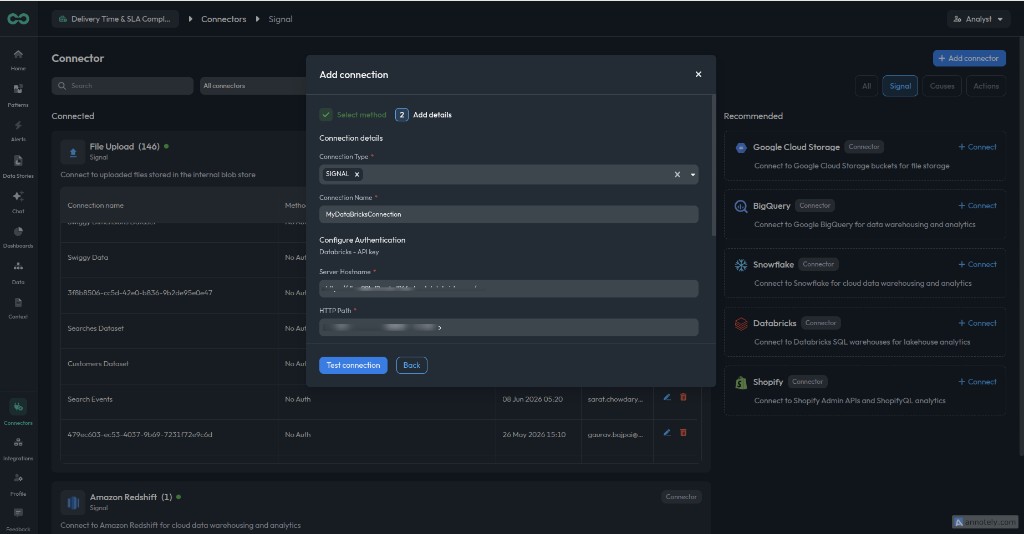

Add Databricks connection details

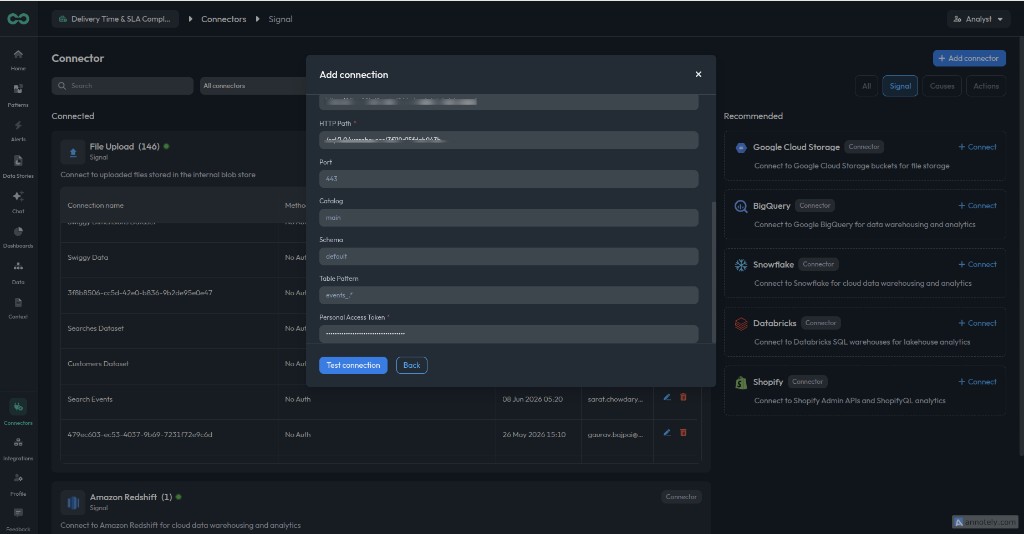

On the Add details step, fill in the Databricks connection fields and paste the personal access token.

Server hostnameRequired

Workspace hostname from the SQL warehouse connection details.

HTTP pathRequired

SQL warehouse HTTP path, for example /sql/1.0/warehouses/<id>.

PortDefault: 443

Connection port. Defaults to 443 if omitted.

Catalog

Unity Catalog to scope discovery. If omitted, Bicycle discovers all catalogs the identity can access.

Schema

Schema to scope discovery. If omitted, Bicycle discovers all accessible schemas.

Table Pattern

Regex used to filter discovered table names, for example events_.*.

Personal Access TokenRequired

Databricks personal access token.

note

Setting Catalog is recommended when you know which catalog Bicycle should read. Leaving it blank scans all accessible catalogs and can be slower on large metastores.

Example values:

• Server hostname: dbc-a1b2c3d4-e5f6.cloud.databricks.com
• HTTP path: /sql/1.0/warehouses/abc123def456
• Catalog: main
• Schema: analytics
• Table Pattern: orders_.*

Test the connection

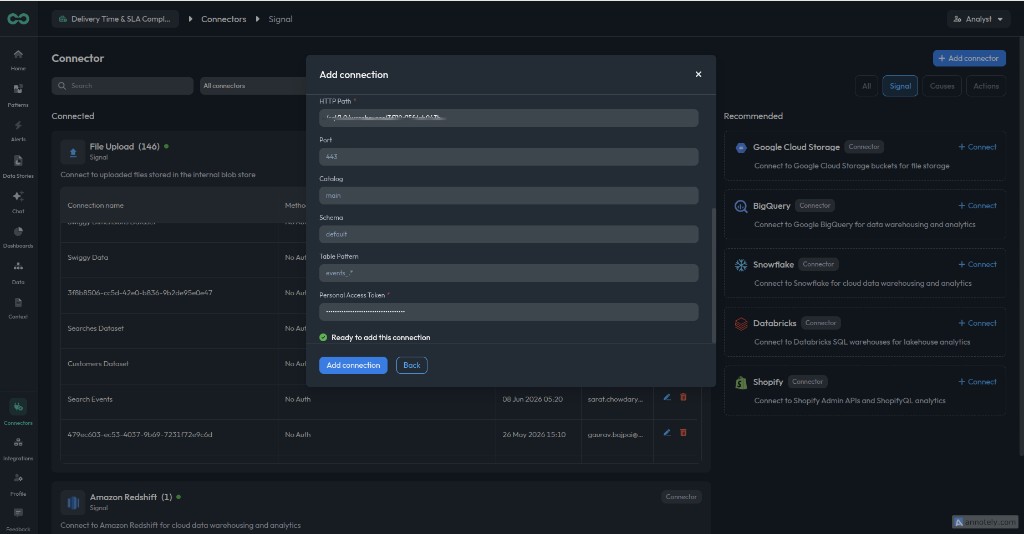

Click Test connection. Bicycle validates the credentials and confirms it can connect to the configured SQL warehouse. When the test succeeds, you will see Ready to add this connection.

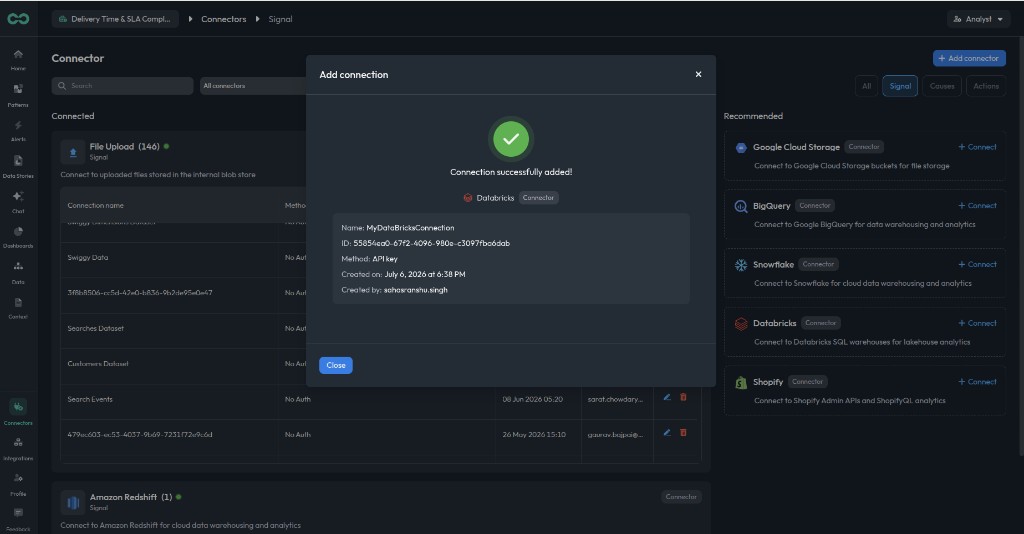

Add the connection

Click Add connection. When the connection is created successfully, you will see a confirmation with the connection name, ID, and method (API key). Click Close to return to the Connectors page.

---

Connect with OAuth (M2M)

Use OAuth machine-to-machine credentials for a non-personal service principal. This is the recommended path for production connections.

note

Bicycle uses OAuth M2M (client ID and client secret). This is not an interactive browser login. The Databricks JDBC driver fetches and refreshes the access token automatically.

In Databricks

1. In the Databricks account console, go to User management > Service principals and create a service principal (or use an existing one).
2. For that service principal, create an OAuth secret. Copy the Client ID (Application ID) and Client Secret.
3. Assign the service principal to the workspace.
4. Grant it CAN USE on the SQL warehouse.
5. Apply the Unity Catalog grants above, using the Client ID as <principal>.

Follow the Databricks guide to authenticate as a service principal with OAuth M2M.

warning

Store the client secret in your organization's secrets manager and rotate it according to your security policy.

In Bicycle

Open Connectors and select Databricks

In Bicycle, go to Connectors. Under Recommended, find Databricks and click + Connect.

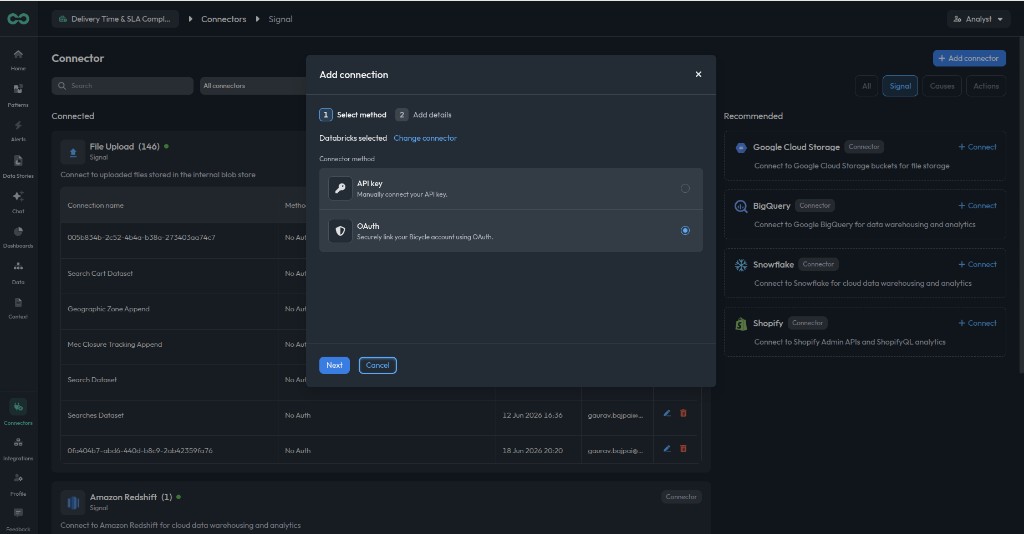

Choose OAuth (M2M)

Enter a connection name that identifies the environment, such as Databricks Production. Select OAuth (M2M) as the Connector method, then click Next.

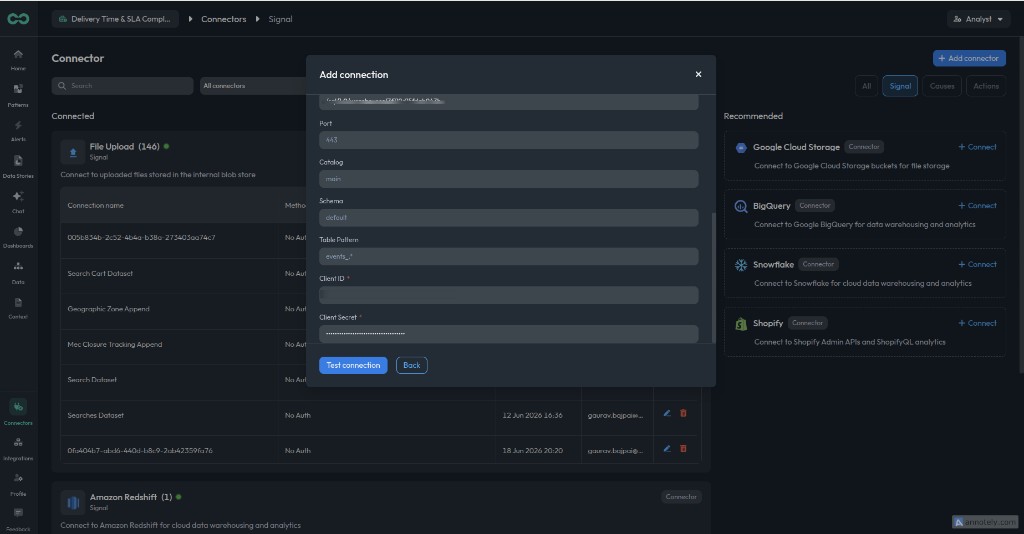

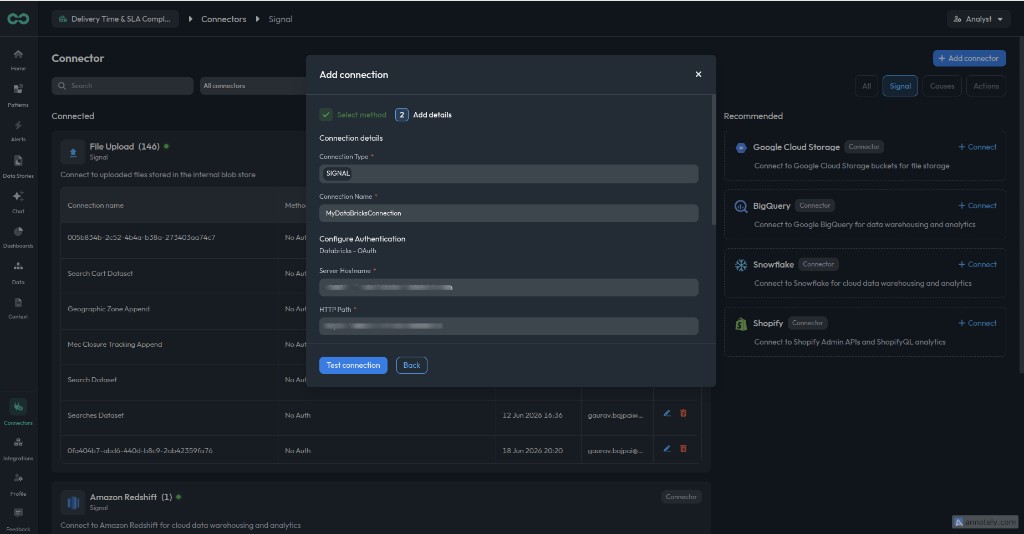

Add Databricks connection details

On the Add details step, fill in the Databricks connection fields and OAuth credentials.

Server hostnameRequired

Workspace hostname from the SQL warehouse connection details.

HTTP pathRequired

SQL warehouse HTTP path, for example /sql/1.0/warehouses/<id>.

PortDefault: 443

Connection port. Defaults to 443 if omitted.

Catalog

Unity Catalog to scope discovery. If omitted, Bicycle discovers all catalogs the service principal can access.

Schema

Schema to scope discovery. If omitted, Bicycle discovers all accessible schemas.

Table Pattern

Regex used to filter discovered table names, for example events_.*.

Client IDRequired

Service principal Application ID from Databricks.

Client SecretRequired

OAuth secret generated for the service principal.

Test the connection

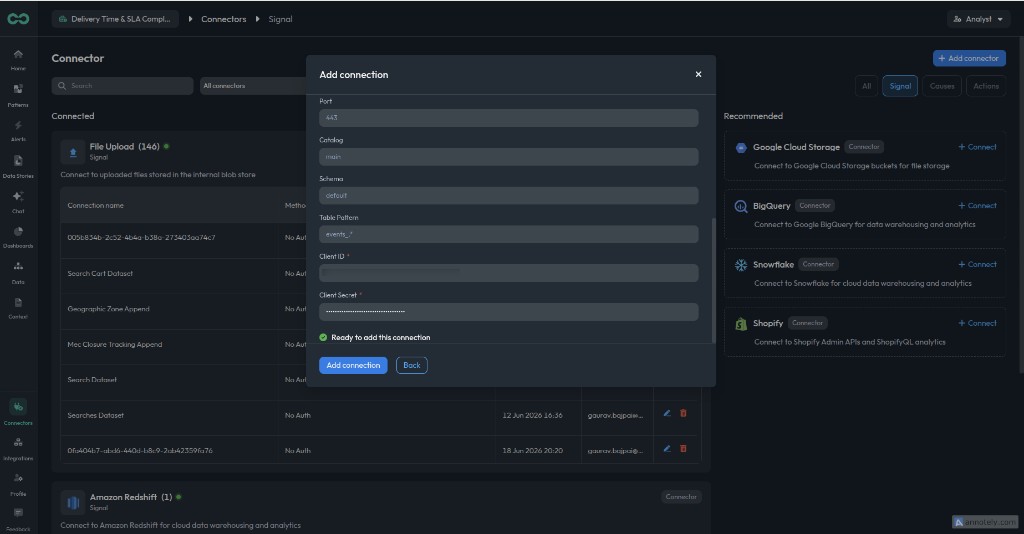

Click Test connection. Bicycle validates the OAuth credentials and confirms it can connect to the configured SQL warehouse. When the test succeeds, you will see Ready to add this connection.

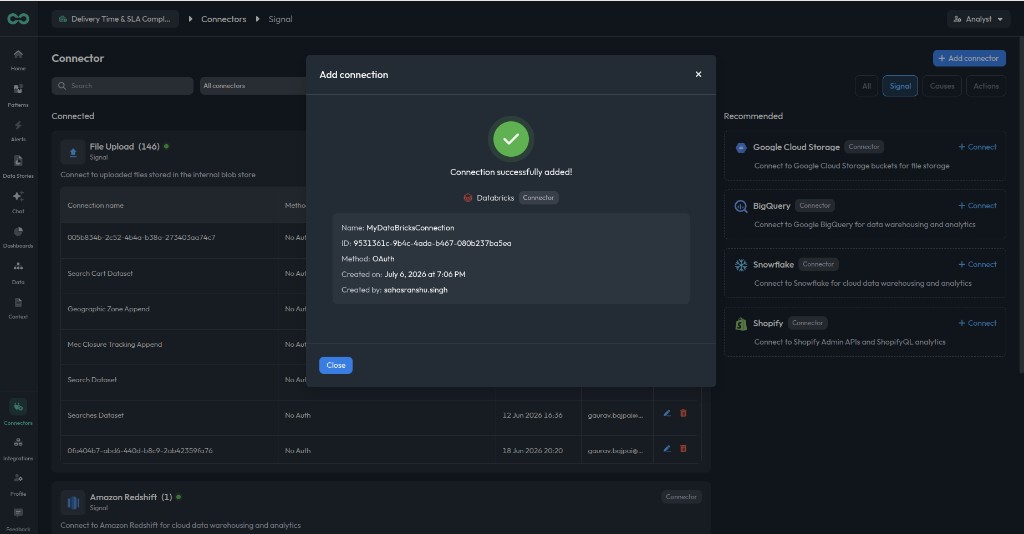

Add the connection

Click Add connection. When the connection is created successfully, you will see a confirmation with the connection name, ID, and method (OAuth (M2M)). Click Close to return to the Connectors page.

If Test connection fails or no tables appear after connecting, check the following.

Error or symptom	Likely cause	Fix
Server hostname is required or HTTP path is required	A required connection field is empty	Enter the Server hostname and HTTP path from the SQL warehouse connection details
Invalid server hostname format...	The hostname contains unsupported characters	Use the hostname from Databricks connection details (alphanumeric labels separated by dots or hyphens)
Invalid HTTP path format...	The HTTP path is malformed	Use the path from connection details, for example /sql/1.0/warehouses/<id>
API token (personal access token) is required	Personal Access Token is empty when using API key auth	Paste the full personal access token
OAuth M2M requires both clientId and clientSecret	One or both OAuth fields are empty	Enter both the Client ID and Client Secret from the service principal
Failed to connect to Databricks: ...	Invalid credentials, wrong hostname or HTTP path, warehouse stopped, missing CAN USE on the warehouse, or blocked network access	Confirm connection details, verify the warehouse is running, check warehouse permissions, validate credentials, and update IP access or allowlist rules if your workspace restricts inbound traffic
Invalid table pattern: ...	Table Pattern is not valid regex	Fix the regex syntax or clear the field to discover all tables
Connection succeeds but no tables are discovered	Missing Unity Catalog grants, wrong catalog or schema name, or Table Pattern filters out all tables	Verify USE CATALOG, USE SCHEMA, and SELECT ON SCHEMA grants; confirm catalog and schema names; test the table pattern
Some catalogs or schemas are missing	The connecting identity cannot access those namespaces	Grant Unity Catalog privileges on each catalog and schema Bicycle should discover

tip

To verify access outside Bicycle, ask your Databricks administrator to connect as the same identity and query system.information_schema.tables in the configured catalog and schema.

References

• Databricks documentation
• SQL warehouse connection details
• Personal access tokens
• OAuth M2M authentication
• Unity Catalog privileges
